Rack Mount Kit for Sophos SG/XG 125 & 135

RM-SR-T2:

RM-SR-T2


Out of stock. We currently do not have an expected arrival date yet. Contact us for more information.

Please note: This model (RM-SR-T2) is not compatible with the new Sophos Rev. 3 firewalls. Check out the new RM-SR-T3 (SG) and RM-SR-T6 (XG) for the newer version of the firewall.


All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

Sorry, this product is no longer available, please contact us for a replacement.

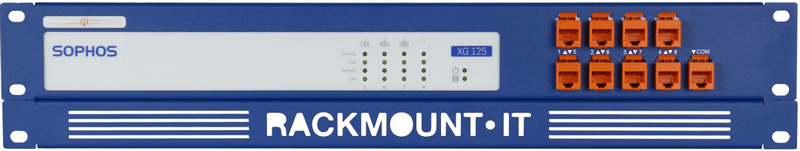

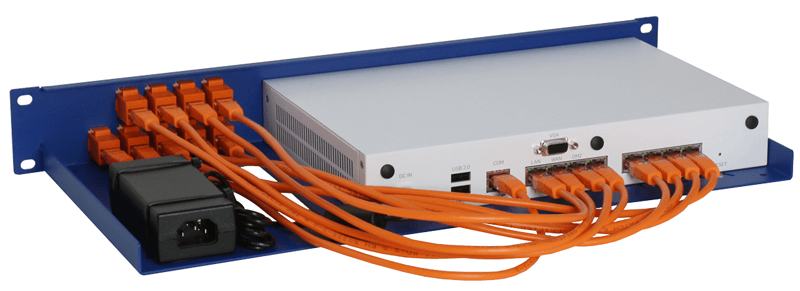

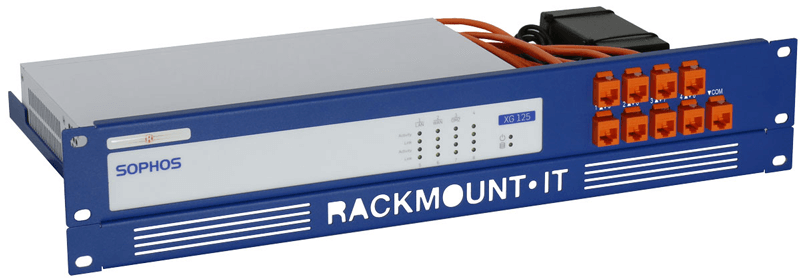

The RM-SR-T2 gives you the ability to mount your Sophos desktop firewalls in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access. The power supply is fixed to prevent an accidental loss of power.

Assembly will take about 5 minutes. Simply slide your Sophos device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.

Please note: This model (RM-SR-T2) is not compatible with the new Sophos Rev. 3 firewalls. Check out the new RM-SR-T3 (SG) and RM-SR-T6 (XG) for the newer version of the firewall.

Image Views:



Specifications
Manufacturer Rackmount.IT
Model Sophos
For Use
  • Sophos SG/XG 125 Rev. 2
  • Sophos SG/XG 135 Rev. 2
Color RAL 5010 Gentian Blue
Height 1.3U
2U with the supplied front plate
Dimensions
(height x width x depth)
2.32 in. x 18.98 in. x 8.54 in. (59 x 482 x 217 mm)
Number of connections brought to the front 9
Console port to the front Yes
Cables 9x 0.5m cables
Couplers 9x RJ45 couplers
What's in the box
  • 1x SoRack + RJ45 couplers
  • 1x Rackmount.IT front plate
  • Cables
  • Assembly materials
  • Installation guide

Download the RM-SR-T2 Datasheet (PDF).
