Rack Mount Kit for Sophos SG 105 Rev. 3 & SG 115 Rev. 3

RM-SR-T7:

RM-SR-T7


All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

Looking to save more?! Our rackmounts bundles are at the best price, best value, super convenient!

You can purchase the rackmount kit and hardware separately or save more by buying them bundle together. Each bundle comes with a hardware and rackmount design for that hardware

Sorry, this product is no longer available, please contact us for a replacement.

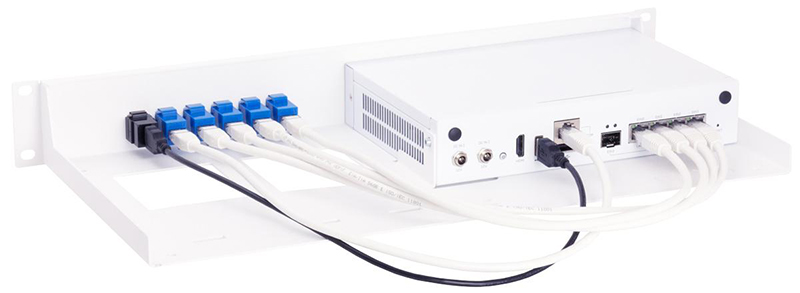

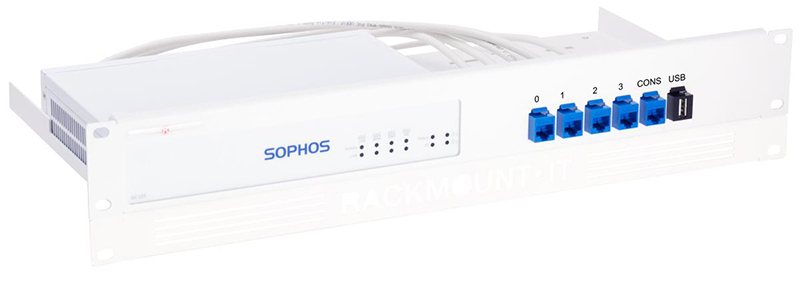

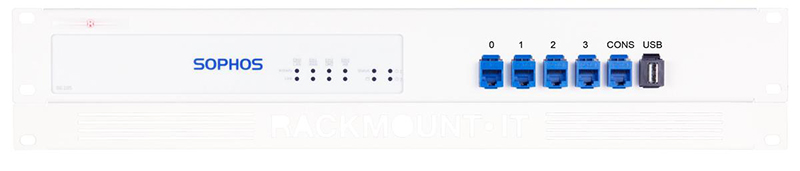

The RM-SR-T7 gives you the ability to mount your Sophos desktop firewalls in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access. The power supply is fixated to prevent an accidental loss of power.

Assembly will take about 5 minutes. Simply slide your Sophos device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.

Image Views:



Specifications
Manufacturer Rackmount.IT
Model Sophos
For Use
  • Sophos SG 105 Rev. 3
  • Sophos SG 115 Rev. 3
Color RAL 9003 Signal White
Height 1.3U
2U with the supplied front plate
Dimensions
(height x width x depth)
2.32 in. x 18.98 in. x 8.54 in. (59 x 482 x 217 mm)
Number of connections brought to the front 6
Console port to the front Yes
Cables 6x 0.5m cables
Couplers 6x RJ45 couplers
What's in the box
  • 1x SoRack + RJ45 couplers
  • 1x Rackmount.IT front plate
  • Cables
  • Assembly materials
  • Installation guide

Download the RM-SR-T7 Datasheet (PDF).
