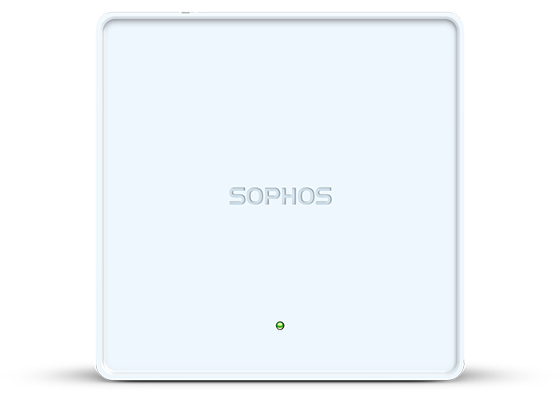

Sophos APX 320 Access Point
2x2:2 access point, dual 5 GHz capable, ideal in high-density school environments or small retail scenarios


Sophos APX 320 Access Point

  • Sophos APX 320 Indoor Access Point - 2x2 MIMO, dual radio, dual 5 GHz capable, internal antennas
  • Includes mounting bracket for wall and/or 15/16"", 9/16"", 3/8"" ceiling T-bar
  • 5-Year warranty, no extended warranty available
  • Power adapter/PoE Injector not included, PoE Injector available for separate purchase
  • 11.5W max
  • power consumption (802.3af PoE Injector required)
  • NOTE: Management in Sophos Central, Sophos Firewall (from v17.5.3), or Sophos UTM.

Sophos Products
Sophos Access Point
Sophos APX 320 Access Point (FCC) plain, no power adapter/PoE Injector
2x2 MIMO, dual 5 GHz ready, internal antennas. Includes mounting bracket for wall and 15/16in, 9/16in, 3/8in ceiling T-bar. No power adapter/PoE Injector, 12W max. power consumption. 5-Year warranty, no extended warranty available.
#A320TCHNF
List Price: $500.50
Add to Cart for Pricing
Sophos Accessories
Gbit/2.5G PoE+ Injector (802.3af/at - 30W) - with US Power Cord
#PO2ZTCHUS
List Price: $124.00
Add to Cart for Pricing
Sophos APX Mounting bracket kit for plenum & flat ceiling mount (for APX 320, 530, 740 only)
#APXZTCHCB
List Price: $47.08
Add to Cart for Pricing
Sophos APX Suspend mount kit (for APX 320, 530, 740 only)
#APXZTCHSM
List Price: $47.08
Add to Cart for Pricing

More pricing below, click here!

Overview:

Sophos Wireless

Sophos Wireless provides an easy, effective way to manage and secure your wireless networks. You can use it on its own or as part of your Sophos Central portfolio of cloud-managed security solutions.

Our cloud-managed Wi-Fi provides the best AP support, scalability and a single pane of glass via Sophos Central, plus all the features described below.

  • Synchronized Connectivity

    Automatically control access for managed clients based upon their health status.

  • Threat Discovery

    Threats on and to your Wi-Fi networks are instantly classified – for example, as rogue APs, spoofing attempts, or unknown devices.

  • Modular Management System

    Manage Wireless on its own or alongside all your Sophos Central-managed security solutions.


Simple Deployment

Deploying access points is easy. We’ll guide you through three simple steps to create your networks, register your access points, and set up one or more sites.

Plug your access point into your network to reach the internet

Find the S/N on the access point and wait for the LED to reach initialize state

Enter or upload your serial number(s), then click 'register'


Synchronized Security: Intelligence – Connected

Sophos Wireless combines the power of the Sophos Central platform and our unique Security Heartbeat™ functionality. It monitors and acts upon the health status of connected endpoint and mobile clients to reduce the risk to your trusted Wi-Fi networks.

  • Integrates with your Sophos Endpoint and/or Sophos Mobile when managed in Sophos Central
  • Provides superior visibility to discover threats at the earliest possible moment
  • Prevents lateral movement by automatically restricting web access for unhealthy clients


Features:

Manage all your security on a single platform

Sophos Central is a scalable management platform which gives you a single pane of glass for all of your cloud-managed security solutions. Using Sophos Central, you can manage Sophos Wireless on its own, or alongside your Endpoint, Mobile, Email, Encryption and Server Protection.



Simple deployment and administration

Using the step-by-step guidance in our on-boarding wizard, creating networks, registering one or more access points, and adding sites is child’s play. Our solution is built to be simple to use, even for non-wireless experts, but that doesn’t mean you forfeit functionality. Schedule firmware upgrades to keep your network up to date and benefit from new features and enhancements in every release.

Superior visibility into wireless health

All the key information about the health of your wireless networks and connecting clients is directly at your fingertips. With visibility into potential threats, such as rogue APs, insight into clients with compliance or connectivity issues and advanced diagnostics, identifying and troubleshooting issues is quick and easy.


Intelligence connected with Security Heartbeat™

When using our Security Heartbeat™ enabled APX Series access points, you can monitor the health status of any Sophos Central-managed endpoint or mobile device and so automatically restrict web access on trusted Wi-Fi networks. Users with serious compliance issues see a splash screen to alert them to their walled garden status but receive full connectivity again, once health is restored.

Security enhanced for your trusted Wi-Fi networks

Our Enhanced Rogue AP Detection classifies neighboring Wi-Fi networks to identify threats and prevent attempts to infiltrate an organization via Wi-Fi.

Multi-site management and cloud scalability

Whether you have just one growing network, or multiple sites, extending your Wi-Fi is as simple as adding an additional access point.


Increased Visibility:

Dashboard Overview

Usage Insight

Threats

Security Heartbeat

Client Overview

Diagnostics

Specifications:

APX 120 APX 320 APX 530 APX 740 APX 320X
Management Cloud: Sophos Central
On-premises: Sophos XG Firewall (v17.5.3/v17.5.5) or SG UTM (v9.7)
Cloud: Sophos Central
Deployment Indoor; desktop, wall, or ceiling mount. Outdoor; pole/wall mount
WLAN Standards 802.11 a/b/g/n/ac Wave 2
Radios 1x 2.4 GHz single-band
1x 5 GHz single-band
1x 2.4 GHz/5 GHz dual-band
1x 5 GHz single-band
1x Bluetooth low energy (BLE)
1x 2.4 GHz single band
1x 5 GHz single band
1x Bluetooth low energy (BLE)
1x 2.4 GHz/5 GHz dual band
1x 5 GHz single band
1x Bluetooth low energy (BLE)
*Regional restrictions apply
Antennas 2x internal dual-band antenna for Radio-0 and 1 2x internal dual-band antenna for Radio-0
2x internal 5 GHz antenna for Radio-1
1x internal 2.4 GHz antenna for BLE (for future use)
3x internal 2.4 GHz antenna for Radio-0
3x internal 5 GHz antenna for Radio-1
1x internal 2.4 GHz antenna for BLE (for future use)
4x internal 2.4 GHz antenna for Radio-0
4x internal 5 GHz antenna for Radio-1
1x internal 2.4 GHz antenna for BLE (for future use)
4x external dual band antenna for Radio-0 and Radio-1 (omni-directional)
1x internal 2.4 GHz antenna for BLE (for future use)
Antenna Options 120° Sector, 30° Directional
DFS
Performance 2x2:2 MU-MIMO 2x2:2 MU-MIMO 3x3:3 MU-MIMO 4x4:4 MU-MIMO 2x2:2 MU-MIMO
Interfaces 1x 12V DC-in 1x 12V DC-in (power supply not included)
1x RJ45 10/100/1000 Ethernet w/PoE
1x RJ45 connector console serial port
1x RJ45 10/100/1000 Ethernet w/PoE
1x RJ45 connector console serial port
1x RJ45 10/100/1000 Ethernet port
1x RJ45 10/100/1000 Ethernet w/PoE
1x RJ45 10/100/1000 Ethernet w/PoE
Power (Max.) 11.8 W 11.5 W 16.7 W 22.4 W 18.9 W
Power-over-Ethernet (Min.) PoE 802.3af PoE+ 802.3at
Dimensions 144x144x33.5 mm 155x155x38 mm 183x183x39 mm 195x195x43 mm 180 x260.5x87 mm
Weight 0.256 kg 0.474 kg 0.922 kg 1.012 kg 1.42 kg
Certifications & Compliance** CB, UL, CE, FCC, ISED (IC), RCM, MIC, Anatel, EN 60601-1-2 (Medical Equipment Directive) CB, UL, CE, FCC, ISED (IC), RCM, MIC, NCC, Anatel, EN 60601-1-2 (Medical Equipment Directive) Plenum-rated (UL2043) CB, UL, CE, FCC, ISED (IC), RCM, Anatel, EN 60601-1-2 (Medical Equipment Directive) Plenum-rated (UL2043) CB, UL, CE, FCC, ISED (IC), RCM, Anatel, EN 60601-1-2 (Medical Equipment Directive) Plenum-rated (UL2043) CE, FCC, IC (ISED), RCM, CB, UL. Anatel, NOM (planned)

*Regulatory restrictions in some regions prevent the use of some 5 GHz channels in outdoor environments, therefore Radio-1 cannot be used in the countries listed here

Documentation:

Download the Sophos APX Series Access Points Data Sheet (PDF).

Overview:

Sophos APX Series

Currently available for management in Sophos Central.

The Sophos APX Series is a growing portfolio of Synchronized Security ready access points. With 802.11ac Wave 2 technology, they are custom-built for increased throughput at load and better performance and security.

APX Series – Product Benefits

  • Security Heartbeat™ ready to connect with other Sophos Central managed products
  • Significant performance improvement over legacy 802.11 Wave 1 models
  • Optimized for both wall- and ceiling-mount
  • 5-year warranty as standard, Advance Replacement RMA included in subscription

APX 740 – our flagship 4x4:4 product for high-density, high-capacity environments

APX 530 – high-performance 3x3:3 access point for typical office environments of all sizes

APX 320 – 2x2:2 access point, dual 5 GHz capable, ideal in high-density school environments or small retail scenarios

Highlights

  • Managed from Sophos Central
  • Superior visibility into wireless health
  • Simple deployment and administration
  • Synchronized Security-ready
  • Enhanced security with rogue AP detection
  • Multi-site management and cloud scalability

Features:

The smarter way to simple, secure Wi-Fi

Sophos Wireless provides an easy, effective way to manage and secure your wireless networks. You can use it on its own or as part of your Sophos Central portfolio of cloud-managed security solutions.

Manage all your security on a single platform

Sophos Central is a highly scalable management platform which gives you a single pane of glass for all of your cloud-managed security solutions. Using Sophos Central, you can manage Sophos Wireless on its own, or alongside your Endpoint, Mobile, Email, Encryption and Server Protection.

Superior visibility into wireless health

The Sophos Wireless dashboard puts all the key information about the health of your wireless networks and connecting clients directly at your fingertips. Not only can you see if there are potential threats you need to deal with, such as rogue APs, but you can also quickly identify clients with compliance or connectivity issues.

Simple deployment and administration

Using the step-by-step guidance in our on-boarding wizard, creating networks, registering one or more access points, and adding sites is child’s play. Our solution is built to be simple to use, even for non-wireless experts, but that doesn’t mean you forfeit functionality. Schedule firmware upgrades to keep your network up to date and benefit from new features and enhancements in every release.

Intelligence connected with Security Heartbeat™

When using our Security Heartbeat™ enabled APX Series access points, you can monitor the health status of any Sophos Central-managed endpoint or mobile device and so automatically restrict web access on trusted Wi-Fi networks. Users with serious compliance issues see a splash screen to alert them to their walled garden status but receive full connectivity again, once health is restored.

Security enhanced for your trusted Wi-Fi networks

Our Enhanced Rogue AP Detection classifies neighboring Wi-Fi networks to identify threats and prevent attempts to infiltrate an organization via Wi-Fi.

Additionally, you can keep your networks secure by providing controlled internet access and hotspots for visitors, contractors, and other guests on your network. Use enterprise-grade backend authentication for a seamless user experience.

Multi-site management and cloud scalability

Whether you have just one growing network, or multiple sites, extending your Wi-Fi is as simple as adding an additional access point.

Sophos APX Series Access Points – at a glance

The Sophos APX Series is a growing portfolio of Security Heartbeat-enabled access points. With 802.11ac Wave 2 technology, they are custom-built for increased throughput at load and better performance and security.

Unboxing Video:

Unboxing the Sophos APX Series Access Points

Join us as we unbox one of our brand new Sophos APX Series access points. The APX Series is a growing portfolio of Synchronized Security ready access points. With 802.11ac Wave 2 technology, they are custom-built for increased throughput at load and better performance and security. Oh, and they look GREAT.

Specifications:

Sophos APX 320 Back View

  APX 320 APX 530 APX 740
802.11ac Wave 2
Management Sophos Central
XG Firewall planned for late 2018
Sophos Central
XG Firewall planned for late 2018
Sophos Central
XG Firewall planned for late 2018
Deployment * Indoor; desktop, wall, or ceiling mount Indoor; desktop, wall, or ceiling mount Indoor; desktop, wall, or ceiling mount
WLAN Standards 802.11a/b/g/n/ac 802.11a/b/g/n/ac 802.11a/b/g/n/ac
Radios 1x 2.4 GHz / 5 GHz dual-band
1x 5 GHz single band
1x Bluetooth low energy (BLE)
1x 2.4 GHz single band
1x 5 GHz single band
1x Bluetooth low energy (BLE)
1x 2.4 GHz single band
1x 5 GHz single band
1x Bluetooth low energy (BLE)
Antennas 2x internal dual-band antenna for Radio-1
2x internal 5 GHz antenna for Radio-2
1x internal 2.4 GHz antenna for BLE
3x internal 2.4 GHz antenna for Radio-1
3x internal 5 GHz antenna for Radio-2
1x internal 2.4 GHz antenna for BLE
4x internal 2.4 GHz antenna for Radio-1
4x internal 5 GHz antenna for Radio-2
1x internal 2.4 GHz antenna for BLE
Performance 2x2:2 MU-MIMO 3x3:3 MU-MIMO 4x4:4 MU-MIMO
Interfaces 1x RJ45 connector console serial port
1x RJ45 10/100/1000 Ethernet w/PoE
1x RJ45 connector console serial port
1x RJ45 10/100/1000 Ethernet port
1x RJ45 10/100/1000 Ethernet w/PoE
1x RJ45 connector console serial port
1x RJ45 10/100/1000 Ethernet port
1x RJ45 10/100/1000 Ethernet w/PoE
Power (Max.) 11.5 W 16.7 W 22.4 W
Power-over-Ethernet
(Min.)
PoE 802.3af PoE+ 802.3at PoE+ 802.3at
Dimensions 155x155x38 mm 183x183x39 mm 195x195x43 mm
Weight 0.474 kg 0.922kg 1.012 kg
Certifications ** CB, UL, CE, FCC, IC, RCM CB, UL, CE, FCC, IC, RCM CB, UL, CE, FCC, IC, RCM
Compliance All APX models have a plenum-rating and comply with EN 60601-1-2
Warranty All APX models have a standard 5-year warranty included in the purchase price
Support A Central Wireless Standard Subscription for APX includes Enhanced Support with Advance Replacement RMA
* A bracket for wall- and/or 15/16", 9/16", 3/8" T-bar ceiling-mount is included with every APX. Further mounting kits will be available for purchase in the near future. ** Further certifications for some models are currently in progress, e.g. MIC for Japan and Anatel for Brazil. APX models are not sold in China, Taiwan and Malaysia at this time.

Documentation:

Download the Sophos APX Series Access Points Data Sheet (PDF).
