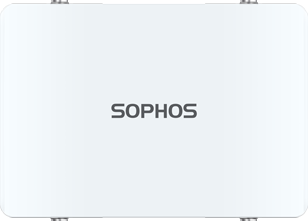

2x2:2 IP67 rated access point for outdoor and exposed areas; directional/sector antenna options available
Sophos APX Series
The Sophos APX Series is a portfolio of access points with Wi-Fi 5 (802.11ac Wave 2) technology. They are custom-built for increased throughput at load and better performance and security.
APX Series – Product Benefits
Sophos Central only: Security Heartbeat™ ready to connect with other Sophos Central managed products*
Significant performance improvement over legacy 802.11ac Wave 1 models
Indoor models optimized for both wall- and ceiling-mount (diverse mounting kits available)
Outdoor model optionally available with external directional/sector antenna
Five-year warranty as standard; Advance Replacement RMA included
Questions? We're here to help.
From offering expert advice to solving complex problems, we've got you covered. Get in touch with a Sophos Solutions Specialist today to learn more!
Ordering Guide
How to Buy
Get Secure Wi-Fi from Sophos in three simple steps:
Choose How to Deploy
Depending on your buying situation, choose the deployment method to best suit you
Select Your Access Points
We have range of models to suit many different environments
Choose Your License
You need the license for your chosen access points
Choosing How to Deploy
Depending on your buying situation, you will need to decide how you want to deploy.
Sophos Wireless: Cloud-managed Wi-Fi in Sophos Central
Our cloud-managed Wi-Fi is a simple, scalable solution best suited to customers who want the latest innovations and technology support. It is also best suited to customers who:
are new to Sophos and not currently using any other Sophos products
are already using other Sophos solutions in Sophos Central
are not planning to implement a UTM or Firewall from Sophos
want to benefit from cloud scalability and adopt an OPEX-based cost model
Controller-managed Wireless
If you're already using Sophos UTM or Sophos XG Firewall, then you can use your existing appliance as a Wireless controller. Find out more under:
All APX models are supplied without a PoE injector. Check the technical specifications to determine if you need 802.3af (PoE) or 802.3at (PoE+). PoE injectors are available for separate purchase.
Mounting Kits
Optional mounting kits are available for the indoor APX 320, APX 530, and APX 740 for flat-ceiling, plenum, or suspend mount.
Antenna Options for APX 320X
In addition to the omni-directional antennas supplied with the unit, we also offer external antenna options for the outdoor APX 320X to meet the requirements of some additional usage scenarios. These are available for separate purchase.
120° sector antenna
30° directional antenna
As the name suggests, the standard omni-directional antennas are designed to provide relatively even coverage around the unit in all directions. These are suitable for usage scenarios where the connecting clients will be distributed around the access point, but particularly in some outdoor areas, there may be obstructions which can interfere with the signal.
With directional/sector antennas you achieve targeted, better coverage at an extended range, and reduce signal wastage.
Which PoE injector do I need?
802.3af = PoE (e.g., for APX 120 and APX 320)
The IEEE 802.3af (PoE) standard supports the delivery of Power over Ethernet up to 15.4W per port that may be used to deliver power to a variety of devices. However, only 12.95W is assured to be available at the powered device as some power is dissipated in the cable as overhead.
802.3at = PoE+ (e.g., for APX 530, 740 and 320X)
The IEEE 802.3at (PoE+) standard supports up to 30W of power on the ports (25.5W after dissipation), allowing devices that require more than 15.4W to power on when connected to the PoE+ ports.
*Note: A PoE+ (802.3at) injector will also support PoE (802.3af), so if you’re not sure, take the PoE+ injector.
